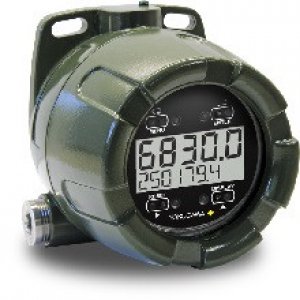

YOKOGAWA PULSE INPUT FLOW RATE/TOTALIZER YPP6830

The new YPP6830 is a rugged, explosion-proof loop-powered rate/totalizer designed for demanding flow applications. It brings modern design, easy readability, and enhanced functionality to hazardous areas around the world in a way never seen before. Other meter designs have lost sight of the fact that the primary thing operators want to do with meters such as these is to look at them. They want a meter with a display that provides the important information about their process, can be seen under various lighting conditions, from wide angles, and from a distance. The YPP6830 delivers all these and more. The rugged, explosion-proof enclosure and extensive agency approvals allow it to be installed virtually anywhere.


Pulse, Open Collector, NPN, PNP, TTL, Switch Contact, Sine Wave (Coil), Square Wave, Opto-Isolated Inputs Explosion-Proof, IP68, NEMA 4X Enclosure 5-Digit 0.7" (17.8 mm) Top Display for Rate or Total 7 Alphanumeric Character 0.4" (10.2 mm) Lower Display for Rate, Total, Grand Total, Units, and Tag 13-Digit Totalizer with Total Overflow Feature Through-Glass Button Programming Isolated 4-20 mA Output for Rate, Total, or Grand Total Two Isolated Open Collector Pulse Outputs, Up to 5 kHz Battery, DC, or Output Loop-Powered Models Gate Function for Rate Display of Slow Pulse Rates K-Factor, Scaling, or Live Input Calibration with 32-Point Linearization Automatic Rate, Total, and Grand Total Unit Conversions Password Protection Backlight Standard on All Models On-Board Data Logging Modbus® Communications RS-485 Option Flanges for Wall or Pipe Mounting Operates from -40 to 75°C

ModelDescription
YPP6830-BTA-0 Battery puwered (or DC with battery backup*) with isolated 4-20mA output, Backlight, 2 Pulse Outputs
YPP6830-CTB-0 Output Loop Powered with Isolated 4-20mA Output, Backlight
YPP6830-DTB-0 Output loop with battery backp*(or battery powered)with loop output, Backlight, Non-isolated 4-20mA Output
YPP6830-AP0-M DC Powered, Backlight, 2 Pulse Output, 2 wire RS-485 connection with Modbus Protocol
YPP6830-APA-M DC Powered with isolated 4-20mA output, 2 wire RS-485 connection with Modbus Protocol
YPP6830-BM0-M Battery Powered (or DC with battery backup, Backlight, 2 Pulse Outputs, 2 wire RS-485 connection with Modbus Protocol
YPP6830-BMA-0 Battery Powered (or with battery backup*) with isolated loop output, Backlight, 2 Pulse Outputs
YPP6830-BTA-M Battery powered (or DC with battery backup) with loop powered backlight, Isolated 4-20mA output, 2 wire RS-485 connection with Modbus protocol
YPP6830-BM0-0 DC Powered (or DC with battery backup*), Backlight, 2 Pulse Outputs
YPP6830-APA-0 DC Powered, Backlight, 2 Pulse Outputs, Isolated 4-20mA Output
YPP6830-AP0-I DC Powered, Backlight, 2 Pulse Output, Isolated signal 2 wire RS-485 connection with Modbus Protocol
YPP6830-APA-I DC Powered, Backlight, 2 Pulse Output, Isolated 4-20mA output, Isolated signal 2 wire RS-485 connection with Modbus Protocol
YPP6830-BM0-I Battery Powered (or DC with battery backup) Isolated signal 2 wire RS-485 with Modbus protocol
YPP6830-BMA-I Battery powered (or DC with battery backup), Backlight, Isolated 4-20mA output, Isolated signal 2 wire RS-485 with Modbus protocol
YPP6830-BTA-I Battery powered (or DC with battery backup) with output loop powered backlight, 2 Pulse outputs, Isolated 4-20mA output, Isolated signal 2 wire RS-485 with Modbus protocol
YPP6830-AP0-0 DC Powered, Backlight, 2 Pulse Outputs
YPP6830-BMA-M Battery powered (or DC with battery backup) with isolated 4-20mA output, Backlight, 2 wire RS-485 connection with Modbus protocol
