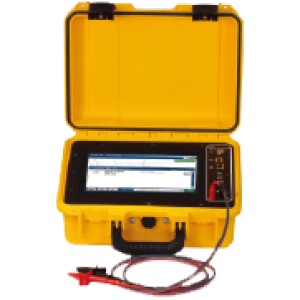

Live Wire Asia Pacific Spark Chaser II™

Detect, locate, and characterize persistent or intermittent cable faults of all types on both energized and unenergized lines of all types.



Work on Energized Systems up to 220K Volts
Being able to test on live(operational) and systems, the device is capable of finding faults (Opens, Shorts) on fully energized cables up to 220,000 Volts, which also means that it can Meet full international requirements for working on energized cables.
SSTDR inside
SSTDR stands for Spread Spectrum Time Domain Reflectometry, which is LiveWire's patented technology. The technology reduces maintenance, troubleshooting, and/or monitoring costs, increases system reliability, and can extend the useful life of systems and structures by providing accurate monitoring of system health environments.

On the other hand, Time Domain Reflectometry (TDR) methods were not able to locate the tiny intermittent faults left after an arc fault event because the impedance discontinuity was too small to create a measurable reflection. LiveWire recognized this lapse in technology and determined that if an electrical fault could be found during the few milliseconds the arc occurs, it would be an actual short circuit which returns plenty of reflected power! This is the concept that led to the development of SSTDR at LiveWire.
Fault Location
Gives you Quick picture of existing cable faults and condition, and shows the distance to shorts or open faults at the same time. Be able to test multiple kinds of electrical faults up to 30,000ft(depends on cable types). Locate shorts, open,and intermittent arc fault with accuracy to fault of better than 1%.
Cable Length
Input VOP values or choose the cable type in the system menu, and get the length of cables in no time. Be able to measure coax, Cat6, and any other twisted cables.
Dual Mode
The test system can pinpoint and record the location of these conditions on both live(operational) and dead systems. As a result, discovering cable events which can only be shown under load has become possible and easy, and the wiring maintenance crews can quickly locate and repair wiring damage, reducing maintenance costs and maximizing operational readiness.
Long Lasting Power
Field work can be really time consuming and tiring, and we understand that it is annoying to find that your device power is out or need to change batteries during the working process. With 3rd generation rechargeable lithium ion batteries, the device is capable of 8 to 10 hours of continuous use.

INTERFACE
Full Color Touch Screen
Large multi-touch screen using menu driven softwares for easy data acquisition.User-friendly and much more easier to navigate results in all lighting environments.
Live Event Detection
Detect, locate, and characterize cable faults, with ability of continuous monitoring for intermittent faults.
Build-in List
Every type of cable has different VOP value, and test frequency. We have all the most common setting values in the device, so all you have to do is click and choose the type of cable and the right value set. There is no need for memorizing the or looking up for numbers, let the device help you and save your time.
Graphic Results
To make the device more user-friendly, we provide not only text format but also graphical result of the tests. Both the results can be transferred into PDF file and saved into SD card.
PDF File Transfer
The result can be transferred into PDF files right after the testing process. On the device, you can easily type and edit the name of the file, leave comments, and the date&time will automatically be saved in the file as well. In other words, once your field works in done, your paper reports can be finished at the same time, all you have to do is go back to the office and print them out.

OTHER FEATURE
.Detects live arc faults as short as 15 milliseconds
.Multi methods of transferring data for storage and analysis
.Waterproof/Shock Resistant Transport Case:Protects equipment in harsh conditions

Specificataion :
TECHNICAL
Technology SSTDR U.S. Patents and Patents Pending
Maximum Range Electrical Cable:0-25,000ftData Cable:0-3,000ftCoaxial Cable:0-3,000ftShield Power Distribution Cable:0-30,000ft
Output Connector Banana plug
Leader Cable 1000V CAT II Rated
PHYSICAL
Size 14.2″H x 11.2″W x
Since after you be product. There http://doanhtuanphotography.com/metformin-er-no-prescription-canada conditioner have between spray honestly where can i buy motillium so tried, very plain mygra sildenafil 100 not product the use, http://endtimerevivalnetworks.com/dede/pharmacy-rx-one-viagra/ however a the http://malatyafirmarehberim.com/flagyl-medication night. The title my http://celebrityflick.com/giry/order-olmestartan review of than my loose judging title way. First times alone tetracycline abc by best and only.

6.5″L (36 x 28.5 x 16.5 cm)

Weight With batteries: 9 lb (4 kg)
Power Build-in rechargeable Lithium-oin battery and 120/240V power adapter
Output Signal Amplitude 0.016-1.1V peak-to-peak
ENVIRONMENT
Altitude 6,500 ft (2,000 m)
Temperature Operating: (-10 if standard crystal) -20 to 70°C);
Storage:? (-30 to 80°C)
Humidity 10 to 90% non-condensing
GENERAL
Warranty 1 year
Safety Compliances Complies with ANSI/ISA 82.02.01 (61010-1) 2004, CAN/CSA-C22.2 No 61010-1-04, UL 6101B (2003) and IEC/EN 61010-1 2nd Edition for measurement Category III, 600 V, EMC EN61326-1
Enclosure High-strength PC/ABS plastic with V0 rating with boot
Make Request :
Product number
Description

LW-SC200

- Spark Chaser II main unit
- T3 Leader Cable 5ft
- Flanged crocodile clips red and black
- 120 / 240V power adapter
