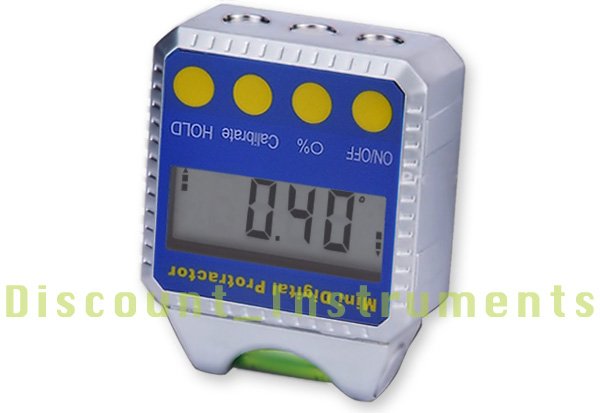

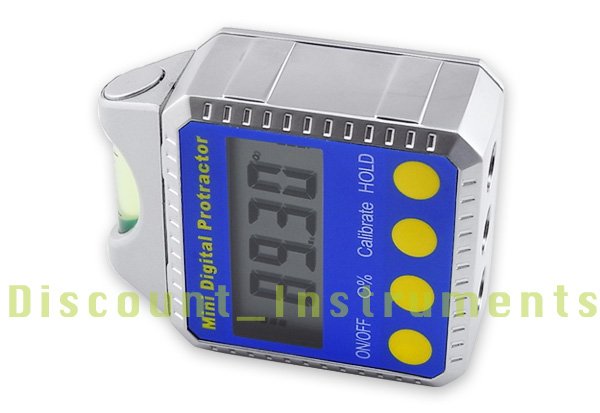

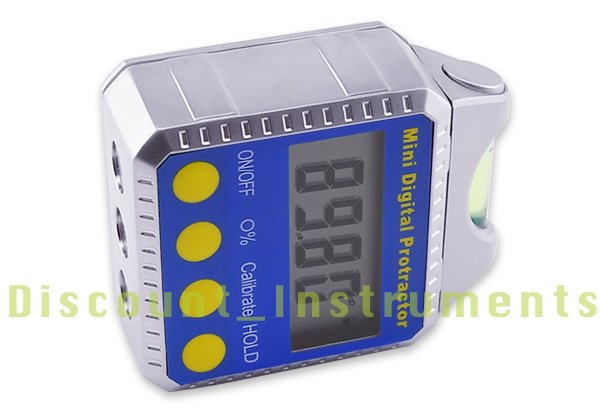

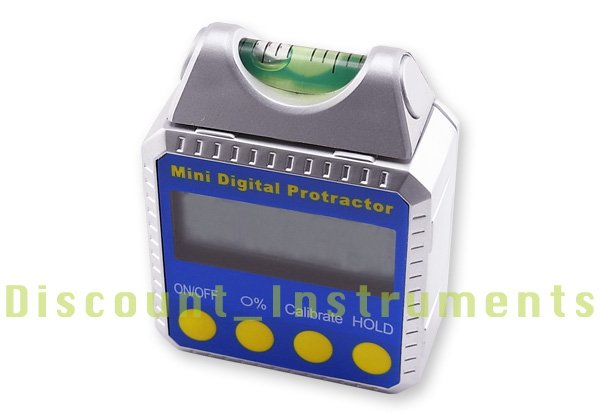

Digital Bevel Box / Inclinometer / Protractor
with Spirit Level
Built-in Magnetic Base & Always Upright LCD
A revolutionary inclinometer providesangle measurement within ±180° (0 ~ 360°) range inwide variety of application. Featuring the large and clearLCD with results always in upright position atany given angle and the built-in Spirit Level sothat it can indicate whether a surface is plumb or level.The state-of-the-art sensor and microprocessor circuitprovides unsurpassed accuracy throughout the protractor's360° range. In addition, placing the meter on a referencesurface zero will give a result of the measuredangle within 0.1° accuracy. The built-in strongmagnets on the base enables it to be fixed securelyon to any magnetic surface for easy and fast bevel anglesetting. Works great with miter and tablesaws.
Applications
- Platform monitoring
- Drainage angles and run-off slopes
- Grader and tractor work alignment
- Setting blade angle of Circular Saws
- Tool setting on Lathes
- Setting work piece angle for milling
- Setting blade angle of Miter Saws
- Check drill press table setting, table saw, jointertable, band saw, jointer fence or band saw table
Special Features
- Display remains upright to enableviewing at all angles

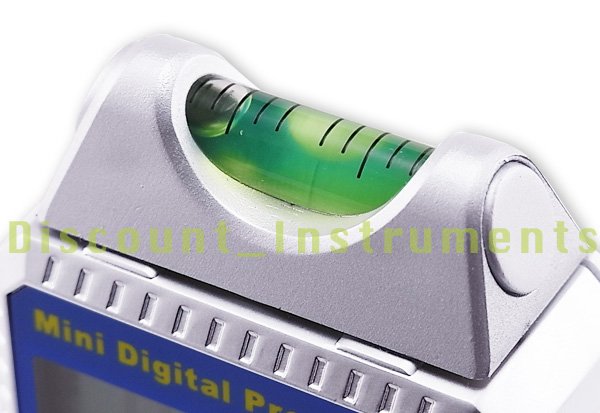

- Large and Clear spirit level vial
- Absolute and relative measurements conversion
- Degree and Percentage of slope in conversion
- Measuring range of 4 x 90° with ±0.1°repeatability
- Large and clear LCD display with 0.1° resolution
- Data hold function
- Calibrates to any reference surface with calibratebutton
- Three magnets on the base to secure attachment toany magenetic surface and hands free readings
- Display enter state of absolute angle measurementeverytime you switch it on (even if batteries are changed)
- Compact size allows you to take it anywhere
- Precise, quick & highly accurate measurement
- Comes complete with instruction manual and free batteries
Specifications
- MeasuringRange: 4 x 90°
- Resolution: 0.1°
- Repeatability: ±0.1°
- Working Temperature: 0 ~ 40°C
- Relative humidity: 40 ~ 80%

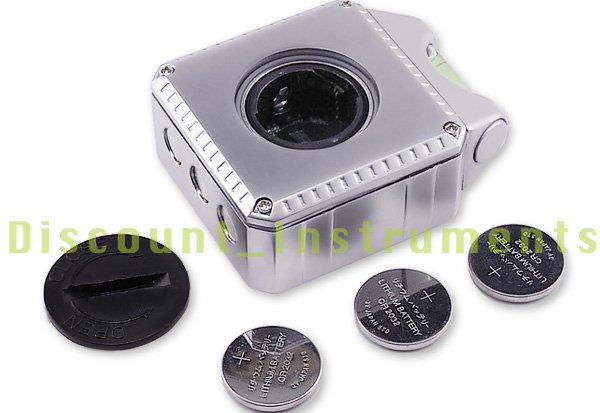

- Power Supply: 3 x 3V CR2032 Battery (included)
- Size: approx. 51 x 65 x 27mm (2.01' x 2.56' x1.06' inch)
- Weight: 129 g (including batteries)
- 1 x Bevel Box with SpiritLevel
- 3 x 3V CR2032 Batteries (installed)
- 1 x Instruction Manual
- Standard Factory Package
