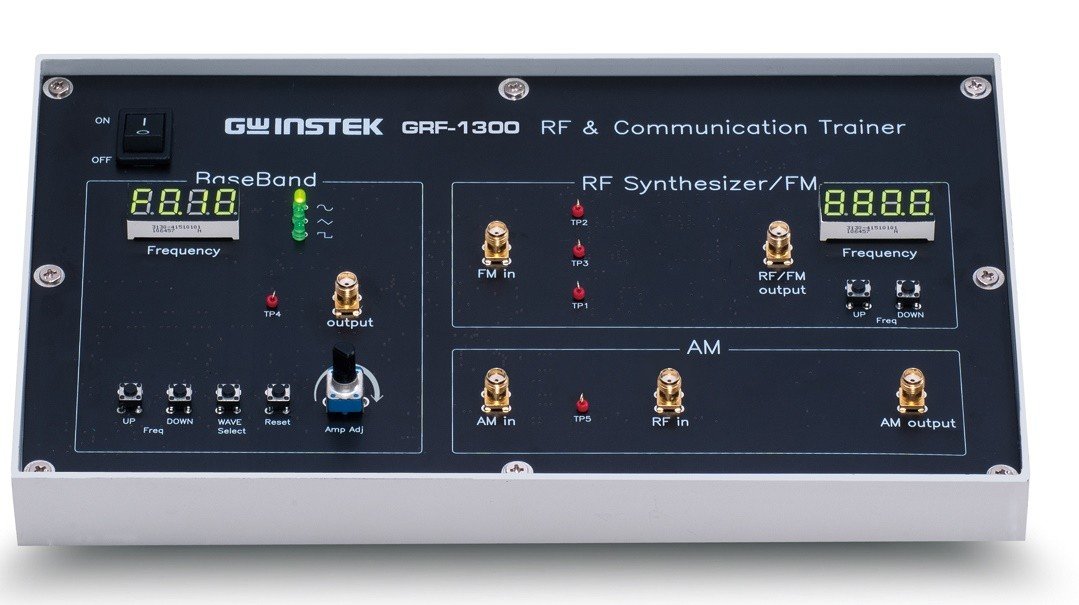

GW INSTEK GRF-1300

Features

- Waveform Support :
* Sine Wave: 0.1 ~ 3MHz
* Square Wave: 0.1 ~ 3MHz
* Triangle Wave: 0.1 ~ 3MHz
- RF Frequency : 870 ~ 920MHz
- AM Modulation & FM Modulation
- 5 On/Off Switches and 5 Test Points to Simulate 8 Failure Conditions for Trouble-Shooting Study
- USB Interface to Provide Remote Control

Description :

(Hot !!!) New Video for GRF-1300 Experiment.. @Youtube!!
Or you can link with
(Ex 1) (Ex 2) (Ex 3) (Ex 4) (Ex 5) (Ex 6) (Ex 7) (Ex 8) (Ex 9) (E-System)

Tune-key Solution for RF and Communication Experiment Courses

GW Instek GSP-730 is a 3 GHz Spectrum Analyzer mainly developed to fulfill the demands of RF Communication educations. Budget constraint and insufficient teaching tools are normally the two hurdles for schools to provide high-quality courses for RF communication experiments. A moderate spectrum analyzer, GSP-730, featuring full functions should provide, along with GRF-1300 training kit possesses a unique position in the field as an economic turn-key solution for 3GHz RF Communication Experiment courses.

With its components, GSP-730 Spectrum Analyzer, GRF-1300 Trainer and a PC, properly connected, a tangible system is integrated for performing ongoing experiments while the lecture is given. Using a PC, the teacher can present teaching material with PowerPoint slide and simultaneously control GSP-730 and GRF-1300 to perform experiments and get spectrum displays and parameter readings on the PC screen. GSP-730 and GRF-1300 easily transferred the current teaching materials, including the PowerPoint slides, textbook, and a remote control software, into electronic-teaching system.


Fully-electronic RF training system


The combination of GSP-730 and GRF-1300 forms a fundamental training system for RF communication and telecommunication classes in the universities, colleges, vocational schools, and the training centers in military as well as private companies. Instead of the tremendous cost of the installation of new training system, the conjunction of GSP-730 and GRF-1300 provides an economic solution to eliminate two obstacles, budget constraint and insufficiency of teaching tools.



Specification
unction Item Specification
Base Band Waveforms Sine, Square, Triangle
Frequency Range 0.1~3MHz
Step: 10kHz
Amplitude ≧1.5Vpp
Harmonics Distortion ≦-30dBc
RF/FM Generator Frequency Accuracy ±0.15MHz
Adjustable Range ≧45MHz (870M ~ 920MHz)
Step: 1MHz
Power Range ≧-15dBm
FM Max Frequency Deviation >3MHz
AM Peak Difference ≧-18dBm
Interface   USB Device
Dimensions & Weight   165(W)*155(H)*90(D)mm, 1.2kg

Accessories :

GSP-730
Quick Start manual *1, User Manual CD *1, Power Cord *1
GRF-1300
Experiment test book of student version, Power point file and remote control software CD, RF Cable *3, Antenna *1, N to SMA adaptor connector, Power Cord *1

  1. Experiment text book of teacher version

Free Download
PC Software Remote Monitor Software

Ordering Information :

GSP-730 3GHz Spectrum Analyzer
GRF-1300 RF and Communication System Trainer
